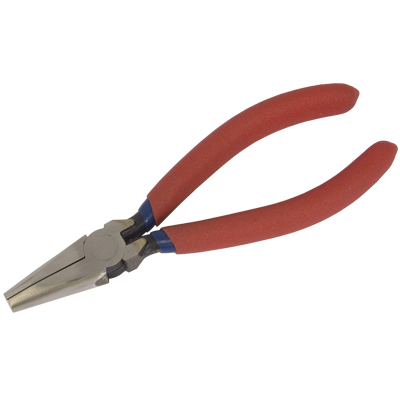

Tool, Outer Shield Conductor Forming, Mini Coax, ITA

Forms or closes the outer shield on ITA Mini Coax contacts.

	Part Number	Description
	610103115	Mini Coax, Contact, ITA, RG316
	610103129	Mini Coax, Contact, ITA, two .025" Square Wire Wrap Posts
	610103130	Mini Coax, Contact, ITA, RG178
	610103140	Mini Coax, Contact, ITA, Solder Sleeve, RG316 & RG178
	610103150	Mini Coax, Contact, ITA, one .025" Round Post/ one .02" Square Post/ .075" Spacing
	610103152	Mini Coax, Contact, ITA, RG316 Double Shield
	610103157	Mini Coax, Contact, ITA, RG178

Add To Quote
