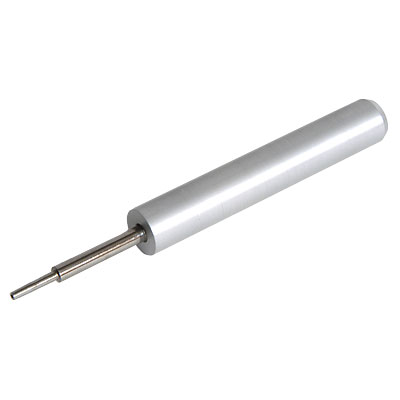

Tool, Outer Shield Conductor Expanding, Mini Coax, ITA

Expands the outer shield on the ITA Mini Coax contacts

	Part Number	Description
	610103115	Mini Coax, Contact, ITA, RG316
	610103129	Mini Coax, Contact, ITA, two .025" Square Wire Wrap Posts
	610103130	Mini Coax, Contact, ITA, RG178
	610103140	Mini Coax, Contact, ITA, Solder Sleeve, RG316 & RG178
	610103150	Mini Coax, Contact, ITA, one .025" Round Post/ one .02" Square Post/ .075" Spacing
	610103152	Mini Coax, Contact, ITA, RG316 Double Shield
	610103157	Mini Coax, Contact, ITA, RG178

Add To Quote
