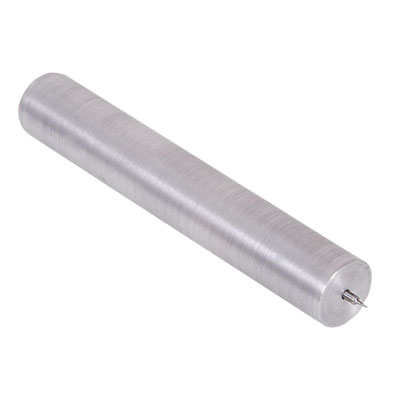

Tool, Center Conductor Enlarging, Mini Coax, Receiver

Enlarges center conductor on the receiver mini coax contacts

Part Number	Description
610104114	Mini Coax, Contact, Receiver, RG316*	N/A
610104141	Mini Coax, Contact, Receiver, RG178
610104149	Mini Coax, Contact, Receiver, RG316 Double Shield

Part Number

Description

610104114

Mini Coax, Contact, Receiver, RG316*

N/A

610104141

Mini Coax, Contact, Receiver, RG178

610104149

Mini Coax, Contact, Receiver, RG316 Double Shield

Add To Quote
