610102116

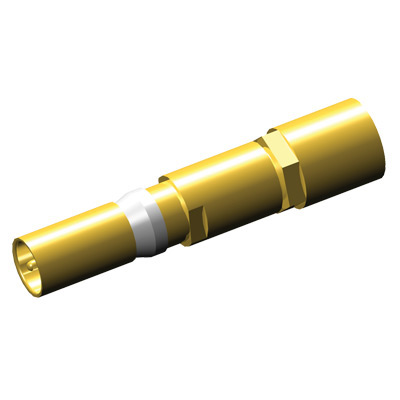

Coax Contact, Receiver, 20 GHz, RG 223, Crimp, (12 GHz using RG 223 / 90 Series modules only)
| Mechanical Specifications | |
|---|---|
| Durability | 20,000 cycles |
| Contact Material | Shield – Brass Center Conductor – BeCu |
| Contact Plating | 30µ" Au over 100µ" Ni |
| Contact Termination | Shield – Crimp/Clamp |
| Insulator | PTFE |
| Mating Force | 3.0 lbs max [1.36 kg] |
| Electrical Specifications | |
| Characteristic Impedance | 50 Ω |
| Frequency Range | DC to 20 GHz |
| VSWR | 1.15 + .01 (f) GHz w/ RG142 (8 GHz) 1.15 + .01 (f) GHz w/ SF142 (20 GHz) |
| Insertion Loss | .06 x√f(GHz) dB |
| DWV | 800 V RMS Shield to center contact 1000 V RMS |
| Contact Resistance | 5 mOhms center/ 3 mOhms outer |
| Cable Specifications | RG 223 |
| Environmental Specifications | |
| Operating Temperature | -65°C to +125°C |
| Vibration | MIL-STD 202, Method 204, Test Condition D |
| Shock | MIL-STD 202, Method 213, Test Condition I |
| Insulation Resistance | 2000 MΩ Min. |
The 20 GHz coax contacts have an impedance of 50 Ohms and a current rating of 5 amps. It is recommended to use SF142 to achieve 20 GHz and RG223 to achieve 12 GHz.
Primary mating contact 610102117. (May mate with other ITA contacts, as well.)
