VPC solutions are designed to accommodate a wide array of ATE chassis sizes/configurations. These products provide easily reconfigurable and scalable solutions. VPC’s solutions offer modular flexibility and address a wide range of signal, power, coaxial, and pneumatic I/O requirements. VPC is also known for their high performance cable assemblies and patchcords which produce quality connections and contribute to an overall high-quality and reliable mass interconnect solution.
Slide Configurations

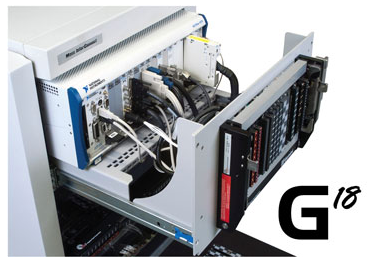

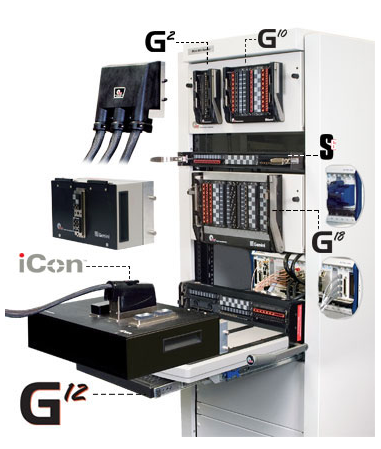

VPC offers two types of slide configurations- platform and standard receivers with slides. These configurations both offer these useful features:
- Short cable lengths to your PXI chassis
- Easy access to PXI cards and wire
- Ability to add secondary instrumentation, such as a power supply or second PXI assembly
VPC’s multiple platform-oriented slide configurations also offer a range of useful features:
- Platform to support ITAs up to 180 lbs when not in use
- Runners along the platform provide smooth-sliding engagement
- Cable tray and other accessories are available
- Available in 6, 12, 18, and 25 modules solutions
VPC offers standard receivers in slide kit packages for even more flexibility to access instrumentation and easy to configure systems:
- Flush rack mount to save valuable space in front of test stand
- Slides providing support up to 180 lbs.
- Compatible with products for medium and high I/O applications
- Available with an i1, i2, iCon, 18 and 25 module solution
Pull Thru Technology

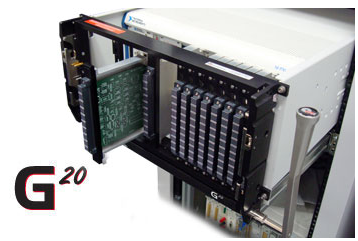

VPC’s pull thru interfaces deliver reliable performance. Pull thru technology provides:
- Short cable lengths for a PXI Chassis
- Direct connection to instrument modules
- Pull through removal of connector modules and instrumentation from the chassis backplane
Available with the G20 and G20x.

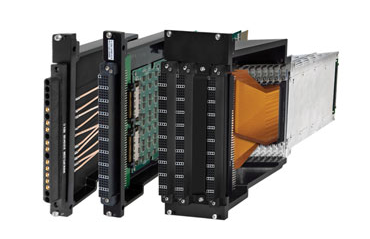

VPC’s PXI pull thru adapters connect your PXI instrument to a VPC module and secure both to a VPC pull thru style receiver. Pull thru adapters offer a number of connection options from the module to the instrument, including PCB adapter, flex print and discrete wiring. Features include:
- Removable side panels for easy maintenance
- Integration of standard VPC 90 series modules
- Shortest wire or circuit length
Vertical Hinged Mounting Frame

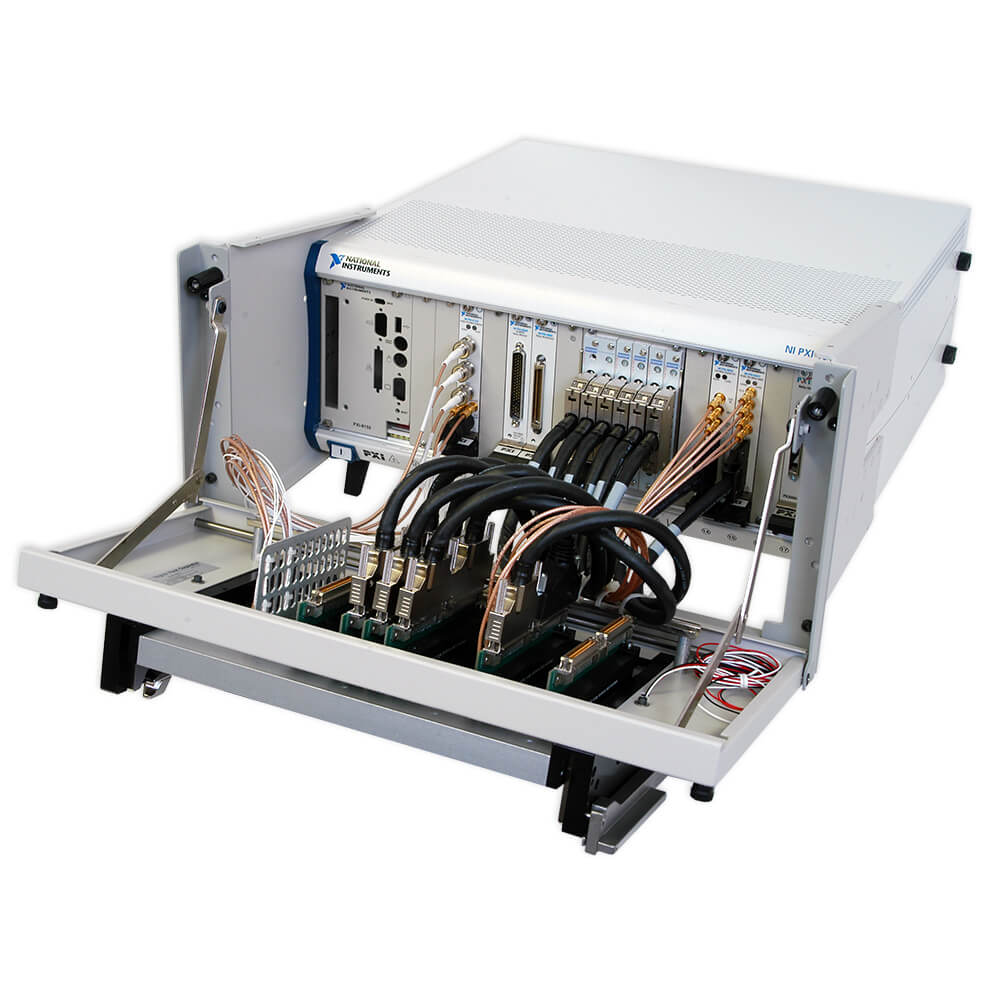

VPC’s vertical hinged mounting frame configurations make it easy to access instrumentation. These configurations offer many desirable features:
- Short cable lengths to PXI chassis
- Easy access to PXI cards
- Ability to add secondary instrumentation, such as a power supply or second PXI assembly
- Bolts directly onto any standard 19” rack
- Allows receiver to hinge down for easy access wiring
- Quick locking latches for easy open and closing motions
- Available for i1, iCon, 2, 6, 10, 18, 25, 50, and 75 module solutions
