310104248

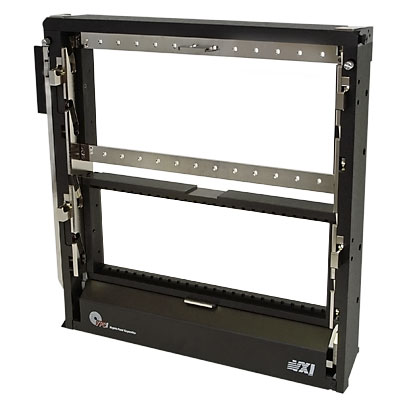

9050, 50 Module, Receiver, VXI and Discrete Wiring, Double Tier

Specifications
Weight 25 lbs. [11.34 kg]
Frame Material Anodized Aluminum
Slide Material Nickel Plated Steel
Linkage, Handle, Latch Stainless Steel
Available Module Slots 50 Positions
Cycle Life 20,000 Cycles
Temperature -55° C to 85° C
Max. Weight Support 80 lbs. @ 12 ” [36 kg @ 30.5 cm]
Max. Mating Force 1331 lbs. [603.7 kg]

9050, 50 Module, Receiver, VXI and Discrete Wiring, Double Tier

This 50 module receiver is rugged and designed to accommodate high I/O. With high contact point availability, the 9050 receiver is suited for larger test and measurement systems. The top tier accommodates VXI instruments and accepts VPC's interconnect adapters with the bottom tier for discrete wiring.
