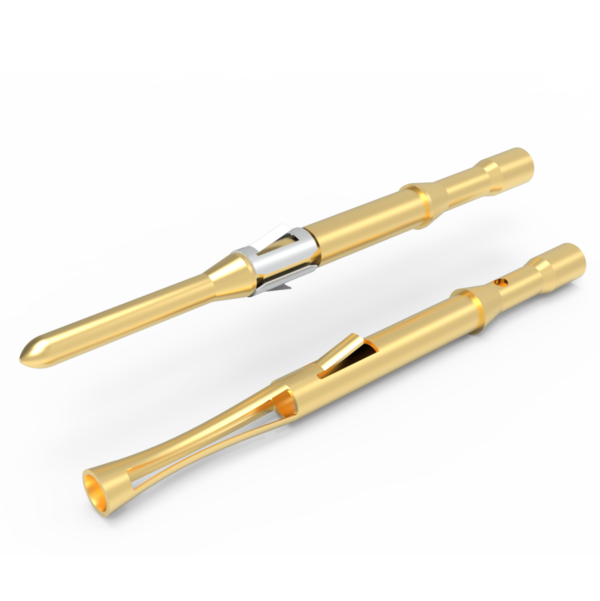

TriPaddle Signal

TriPaddle signal contacts achieve superior performance using VPC's patented TriPaddle design.

  • Rated up to 20,000 cycles

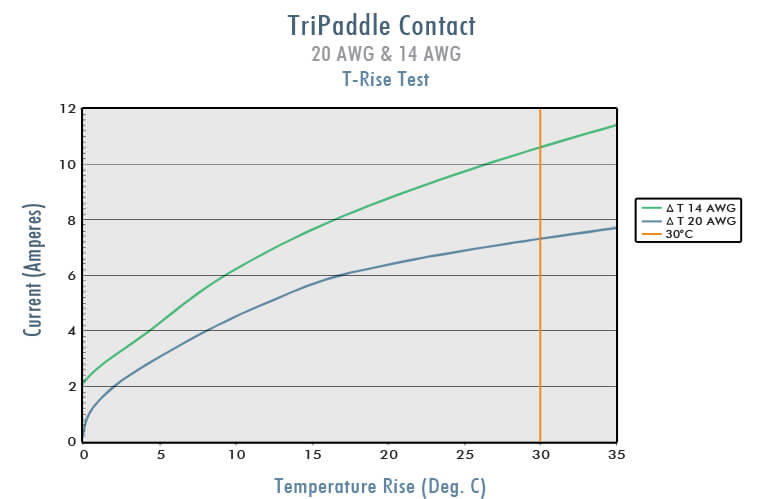

  • Carries up to 7 amps  (22 AWG ) or 10 amps (14 AWG) continuous
  • Resistance is 4 mOhms max

User Manual


Contact - ITA

  • Signal, Contact, ITA, TriPaddle, Round Post, PCB Mount
    Signal, Contact, ITA,TriPaddle,7 Amp, 20-24 AWG
    Signal, Contact, ITA, TriPaddle, 7 Amp, .025" Square Post for Wire Wrap
    Signal, Contact, ITA, TriPaddle, 10 Amp, 14-18 AWG
    Signal, Contact, ITA, TriPaddle, 7 Amp, .025" Square Post for Wire Wrap
    Signal, Contact, ITA, TriPaddle, 7 Amp, 26-28 AWG

Contact - Receiver

  • Signal, Contact, Receiver, TriPaddle, 7 Amp, 20-24 AWG, Crimp only
    Signal, Contact, Receiver, TriPaddle, 10 Amp, 14-18 AWG
    Signal, Contact, Receiver, TriPaddle, 7 Amp, 26-28 AWG
    Signal, Contact, Receiver, TriPaddle, 10 Amp, 14-18 AWG
    Signal, Contact, Receiver, TriPaddle, 5 Amp, .025" Round Post

Tool- Crimp

  • Tool, Crimp, TriPaddle (10 amp), Thermocouple, Micro Power, Receiver and ITA , Locator Required
    Tool, Crimp, QuadraPaddle and TriPaddle,  Receiver and ITA, Locator Required

Tool- Extraction

  • Tool, Extraction, TriPaddle and Thermocouple, Receiver and ITA

Tool- Locator

  • Tool, Locator, TriPaddle, ITA
    Tool, Locator, TriPaddle, ITA
    Tool, Locator, TriPaddle, Receiver
    Tool, Locator, TriPaddle, Receiver (only for contact p/n #'s 610110128 Rev C+ and 610110177)
