Interconnect Adapters

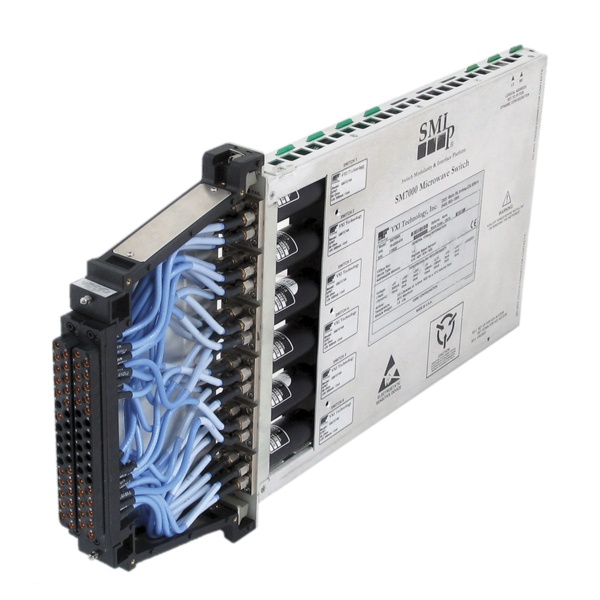

Interconnect Adapters funnel wiring from modules to a VXI card. The adapter has removable side, top and bottom plates. Connector cover plates and cable clamps are ordered separately.

VPC VXI adapters have been re-engineered to eliminate the need for punching holes in certain manufacturers cards. This design uses a clip that clamps down on the card's existing ejector tabs which firmly fastens the adapter to the card.

Accessory

  • 510109117
    Module Retainer Block Set, for Discrete Wiring, 2 Positions
    510109150
    Slot 0 Module Retainer Block Set, for Discrete Wiring, 1 Position
    510109327
    Connector Cover Plate for 15-pin, D-Shell (for part# 510109179 / 197)
    510109354
    Mounting Ear Kit, VTI Instruments, SMP1200 Carrier, (for use with part #510109118)
    510109355
    Mounting Ear Kit, VTI Instruments, SMP 1100 Carrier (for use with Part # 510109202)

Tool- Extraction

  • 910109111
    Tool, Extraction, 90 Series Modules, Interconnect Adapters

VXI Adapter

  • 510109118
    Interconnect Adapter, C-Size, Double Slot, 4 Module Positions
    510109179
    Interconnect Adapter, C-Size, Single Slot, 2 Module Positions, Clamp Style
    510109197
    Interconnect Adapter, B-Size, Single Slot, uses VME to VXI Adapter
    510109202
    Interconnect Adapter,  C-Size, Single Slot, (use with Part # 510109355)
    510120110
    Interconnect Adapter, Wired, Coax, 3 Male BNC
    510120149
    Interconnect Adapter, Wired, TriPaddle, Agilent E1460A
    510123138
    Interconnect Adapter, Wired, Racal Instruments 1260-17
    510123169
    Interconnect Adapter, Wired, Racal Instruments 1260-18
    510127355
    Interconnect Adapter, Single Slot, 2 Module Positions, VXI SM4351
    510127370
    Interconnect Adapter, Single Slot, 2 Module Positions,  VXI SM4801
