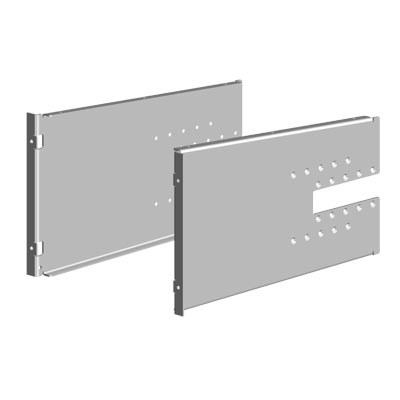

Mounting Kit, Chassis, NI PXI-1044/1045/1065/1085, PXIe-1065/1075 & PXIe-1095
Allows for mounting 5U Vertical Hinged Mounting Frames to the chassis with 5 different depth settings.
Accessories and Related Parts
Mounting Panel
Part Number
Description
Vertical Hinged Mounting Frame
Vertical Hinged Mounting Frame, G18, 5U
Vertical Hinged Mounting Frame, G6, 5U, 1 Position
Vertical Hinged Mounting Frame, G10, 5U
Vertical Hinged Mounting Frame, 5U, Blank
Vertical Hinged Mounting Frame, G2, 5U, 3 Position, (2 Blank Plates Included)
