310120168

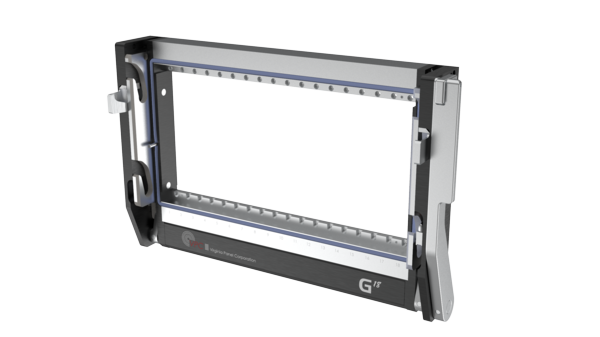

Receiver, G18, 18 Module, EMI Gasket
| Specifications | |
|---|---|
| Weight | 6.9 lbs. [3.130 kg] |
| Frame Material | Anodized and Clear Chromated Aluminum |
| Slide Material | Nickel Plated Steel |
| Linkage, Handle, Latch | Stainless Steel |
| Available Module Slots | 18 Positions |
| Cycle Life | 20,000 Cycles |
| Temperature | -55ºC to 85ºC |
| Max. Weight Support | 25 lbs. @ 6" [11 kg @ 15.25 cm] |
| Max. Mating Force | 942 lbs. [427.3 kg] |
The lightweight and rugged 18 module Receiver provides a solution that will accommodate larger ATE chassis’ (PXI, VXI, SCXI). It allows immense versatility by affording space for up to an 18 slot PXI chassis. This receiver also comes with a gasket for EMI applications.
