310131103

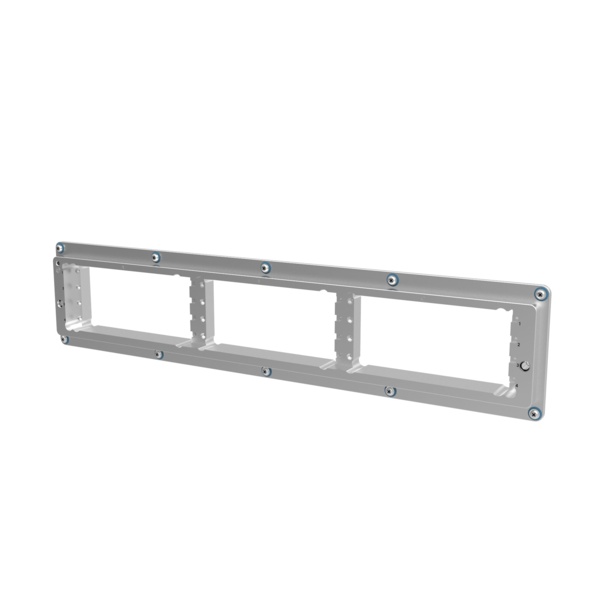

Receiver, D12, 12 Modules, 90 Series Modules

Specifications
Weight 1.8 lbs [.82 kg]
Frame Material Nickel Plated Aluminum
Guide Pin Material Heat Treated Stainless Steel
Floating Bushing Material Nylon
Internal Bushing Material Stainless Steel
Operating Temperature -55° C to 110° C
Cycle Life 150,000 Mating Cycles
RoHS Directive 2011/65/EU Status Compliant
REACH Article 33 Status Compliant
ECHA Article 59 of Reach Regulation Compliant

The D12 receiver frame accepts twelve 90 Series modules and can engage up to 2,880 signal contacts.
