310131104
Receiver, D25, 25 Modules, 90 Series
| Specifications | |
|---|---|
| Weight | 3.5 lbs [1.59 kg] |
| Frame Material | Nickel Plated Aluminum |
| Guide Pin Material | Heat Treated Stainless Steel |
| Floating Bushing Material | Nylon |
| Internal Bushing Material | Stainless Steel |
| Operating Temperature | -55° C to 110° C |
| Cycle Life | 150,000 Mating Cycles |
| RoHS Directive 2011/65/EU Status | Compliant |
| REACH Article 33 Status | Compliant |
| ECHA Article 59 of Reach Regulation | Compliant |

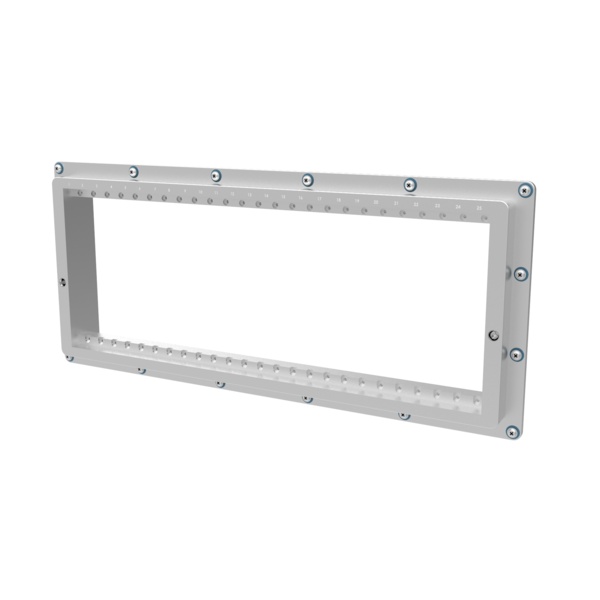

Receiver, D25, 25 Modules, 90 Series
The D25 receiver frame accepts twenty-five 90 Series modules and can engage up to 5,952 signal contacts.
