510170108
PCB Adapter, Receiver, SIM, VTAC, 96 Pos, 14 Slot, to (1) 12x InfiniBand
| Specifications | |
|---|---|
| PCB Material | Rogers 4450/RO4003 W/ PSR-4000BN solder mask |
| PCB Pads | Immersion gold |
| VTAC Insert Material | Blue/black LCP |
| VTAC Contact Material | Alloy 7025 |
| InfiniBand Housing Material | Nickel-plated carbon steel |
| InfiniBand Contact Material | Gold/nickel-plated copper alloy |
| InfiniBand Shell Material | Nickel-plated carbon steel |
| Module Positions Required | 14 |
| Number of Extraction Tools Required | 2 |
| RoHS 2011/65/EU | Compliant |

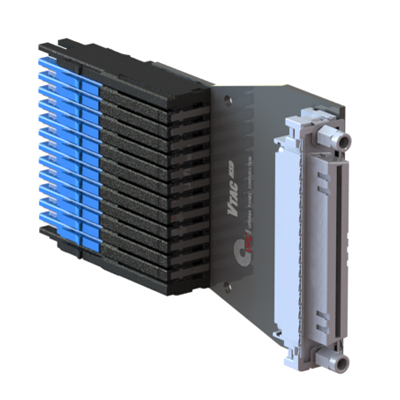

PCB Adapter, Receiver, SIM, VTAC, 96 Pos, 14 Slot, to (1) 12x InfiniBand
A small, modular PCB board that connects high speed digital inserts (VTAC) to a single 12x InfiniBand connector. Great for COTS cable configurations. Compatible with all VTAC/SIM receiver modules.
