510170114

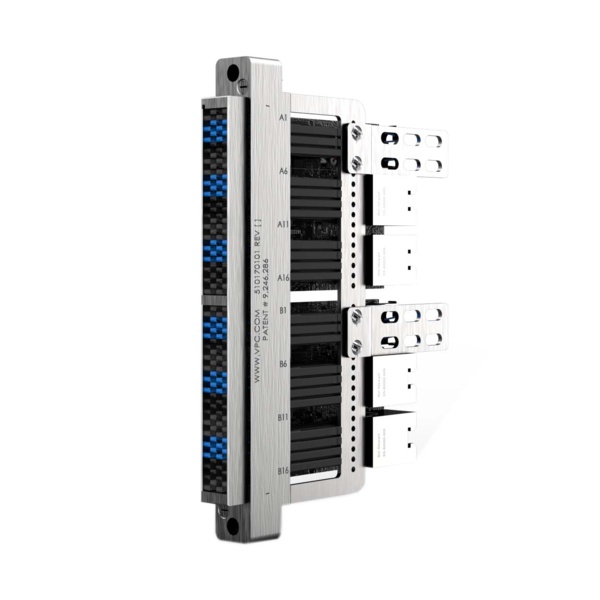

PCB Adapter, Receiver, VTAC, to (2) USB 5 Gbps (USB 3.0, USB 3.1 Gen 1, USB 3.2 Gen 1) and (4) RJ45 Connectors
| Specifications | |
|---|---|
| PCB Material | Rogers 4450/RO4003 W/ PSR-4000BN solder mask |
| PCB Pads | Immersion gold |
| VTAC Insert Material | Blue/black LCP |
| VTAC Contact Material | Alloy 7025 |
| Module Positions Required | 6 |
| Number of Extraction Tools Required | 1 |
| RoHS 2011/65/EU | Compliant |
PCB Adapter, Receiver, VTAC, to (2) USB 5 Gbps (USB 3.0, USB 3.1 Gen 1, USB 3.2 Gen 1) and (4) RJ45 Connectors
Mates with p/n 510171114.
Please note: The RJ45 connectors extend beyond the width of the module. Care should be taken when installing in positions adjacent to other PCBs. Please contact VPC, if further assistance is needed.
