610102114
Coax, Contact, Receiver and ITA, 40 GHz
| Mechanical Specifications | |
|---|---|
| Durability | 20,000 cycles |
| Contact Material | Passivated stainless steel body beryllium copper contacts Au plated |
| Contact Plating | Au plated |
| Contact Termination | 2.92mm compatible |
| Insulator | PTFE |
| Mating Force | 1.5 lbs max [0.68 kg] |
| Electrical Specifications | |
| Characteristic Impedance | 50 Ω |
| Frequency Range | DC – 40 GHz |
| VSWR | 1.35 DC - 18 GHz 1.55 18 - 40 GHz |
| Insertion Loss | ≤ -0.3 dB @ DC - 18 GHz ≤ -1.5 dB @ 18 - 40 GHz |
| Cable Specifications | 2.92 mm Compatible |
| Environmental Specifications | |
| Operating Temperature | -50°C to +125°C |

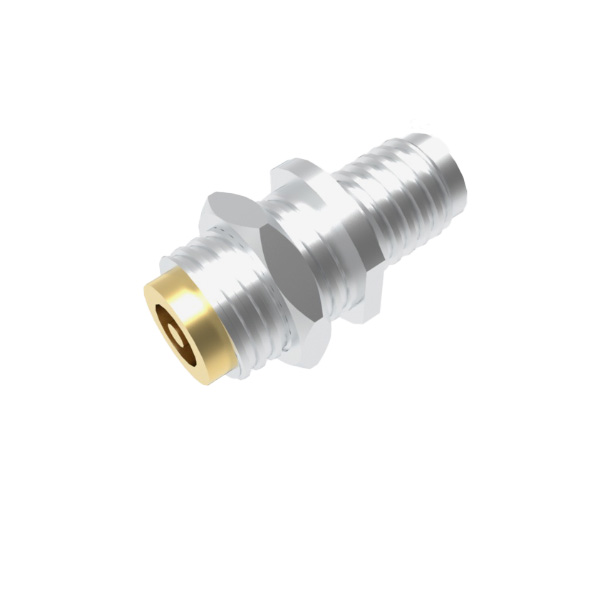

The 40 GHz Coax contact is a blind mate connector that mates with 3.5 mm and 2.92 mm connectors. It is recommended to use 2.92 mm connectors for frequencies above 35 GHz. The temperature range is -50°C to +125°C.
