610103103

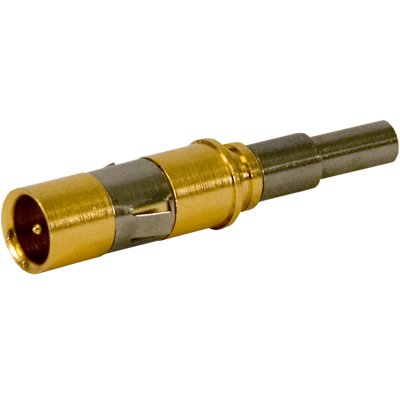

Coax, Contact, ITA, 50 Ohm, RG174 or RG316
| Specifications | |
|---|---|
| Characteristic Impedance | 50 Ohms |
| Frequency Range | DC to 2 GHz |
| Insertion Loss | < .017 dB @ 100 Mhz |
| VSWR | ≤ 1.10 : 1 @ 100 Mhz |
| Operating Current | 1.5 Amps Max. Continuous |
| Contact Resistance | 6 mOhms Max. |
| Mating Force | 1.5 lbs Max [0.68 Kg] |
| Dielectric Withstanding Voltage (DWV) | 1000 VDC Min. |
| Insulation Resistance | 6 mOhms Min. |
| Contact Body | Shield – Brass Center Conductor – Brass |
| Contact Plating | Shield – 50µ" Au over 100µ" Ni Center Conductor – 60µ" Au over 100µ" Ni |
| Cycle Life | 20,000 Cycles |
