610153102

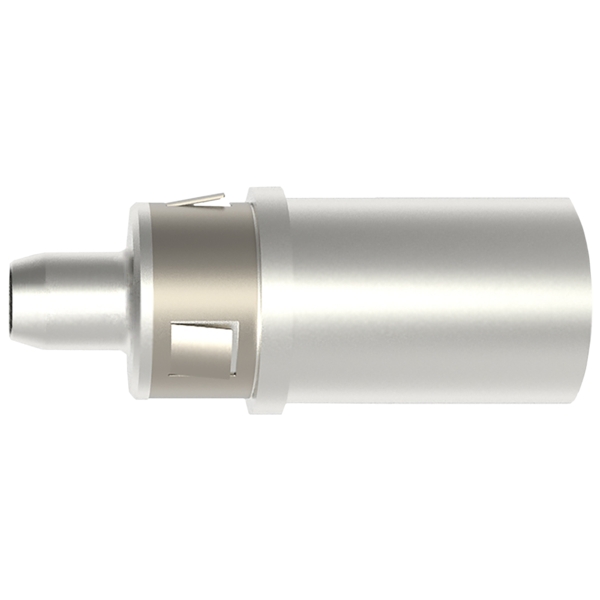

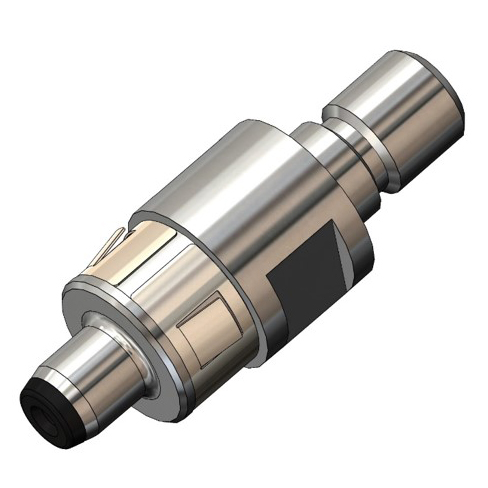

High Current, Contact, ITA, 500+ Amps, 350 MCM
| Specifications | |
|---|---|
| Operating Current |
500 Amp Continuous using 350 MCM 1500A Typical low duty cycle applications |
| Operating Voltage | 1500VDC or Peak AC |
| T-Rise | +40°C at 500 Amps |
| Contact Termination | Crimp |
| Cycle Life | 10,000 Cycles |
| AVG Mating Force (lbs) | 2.0 |
| AVG Unmating Force (lbs) | 1.2 |
| IP Rating | 2.0 |
