7-102914000-072

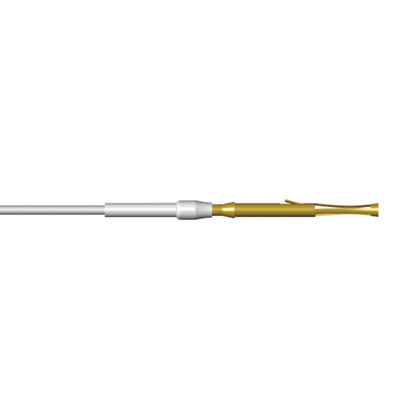

Signal Patchcord, Receiver, TriPaddle, 10 Amp, 72", 14 AWG, Single Ended
| Specifications | |
|---|---|
| Operating Voltage & Current | 10 Amps Max. Continuous (14 AWG) 600 Volt Max. use of wire mil-w-16878/4 |
| Contact Resistance | 4 mOhms Max. Measured at 50 mV @ 100 mA |
| Insertion Force | 4 oz. Nominal |
| Dielectric Withstanding Voltage (DWV) |
1500 VDC Min. |
| Insulation Resistance | 4000 MOhms Min. |
| Contact Body | BeCu |
| Contact Plating | 50µ” Au over 100µ” Ni |
| Cycle Life | 20,000 Cycles |
| Wire Type | 14 AWG Stranded, M16878/4 |
