7-104424000-072

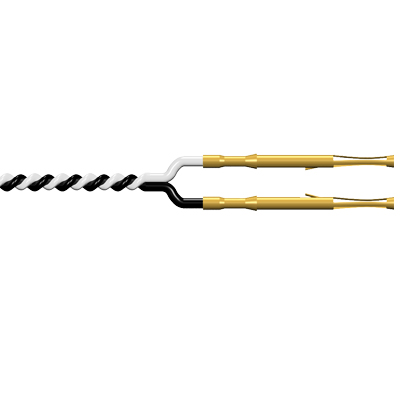

Signal Patchcord, Receiver, 72", TriPaddle, 24 AWG Twisted Pair, Single Ended ( 3 Amps)
| Specifications | |
|---|---|
| Operating Voltage & Current | 3 Amps Max. Continuous (24 AWG) 600 Volt Max. use of wire mil-w-16878/4 |
| Contact Resistance | 4 mOhms Max. Measured at 50 mV @ 100 mA |
| Mating Force | 4 oz. Nominal [0.11Kg] |
| Dielectric Withstanding Voltage (DWV) |
1500 VDC Min. |
| Insulation Resistance | 4000 MOhms Min. |
| Contact Body | BeCu |
| Contact Plating | 30µ” Au over 100µ” Ni |
| Cycle Life | 20,000 Cycles |
| Wire Type | 24 AWG Twisted Pair |
