7-121422000-072

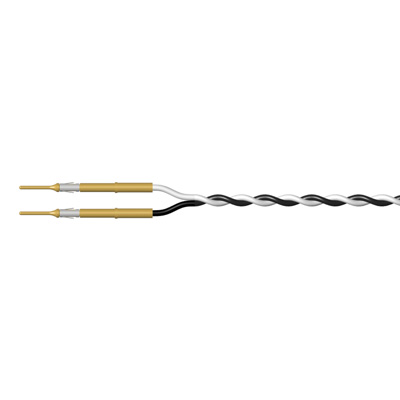

Signal, Patchcord, ITA, 72", QuadraPaddle, 22 AWG White Twisted Pair, Single Ended ( 5 Amps)
| Specifications | |
|---|---|
| Operating Voltage & Current | 5 Amps Max. Continuous; 600 volt Max. use of wire Mil-W-16878/4 |
| Contact Resistance | 25 mOhms Max. Measured at 50 mV @ 100 mA |
| Mating Force | 2 oz. Nominal [0.05Kg] |
| Dielectric Withstanding Voltage (DWV) |
1500 VDC Min. |
| Insulation Resistance | 5000 MOhms Min. |
| Contact Body | (RCV) – BeCu (Twin Female) BeCu/PhBrz (Crimp) Male (ITA) – Brass |
| Contact Plating | Female (RCV) – 50µ” Au over 100µ” Ni Male (ITA) – 30µ” Au over 100µ” Ni |
| Cycle Life | 20,000 Cycles |
| Wire Type | 22 AWG Twisted Pair |
