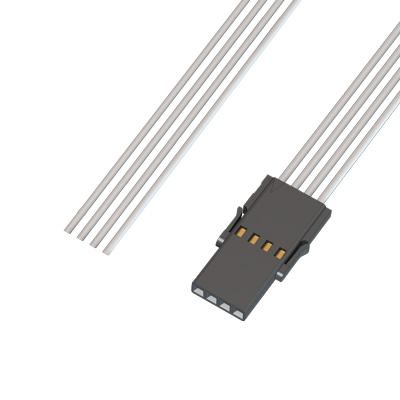

Patchcord, Signal, Receiver, 36", QuadraPaddle Insert, Single Ended
Accessories and Related Parts
Insert - QuadraPaddle
Part Number
Description
Signal, Insert, Receiver, QuadraPaddle, SIM, 1 Slot (not loaded- for discrete wiring only)
Patchcord-ITA-QuadraPaddle
Signal, Patchcord, ITA, 36", QuadraPaddle Insert, Single Ended
Tool- Extraction
Tool, Extraction, VTAC, Receiver and ITA
Tool, Extraction, SIM QuadraPaddle, Receiver Insert Contacts
