7-332116000-036

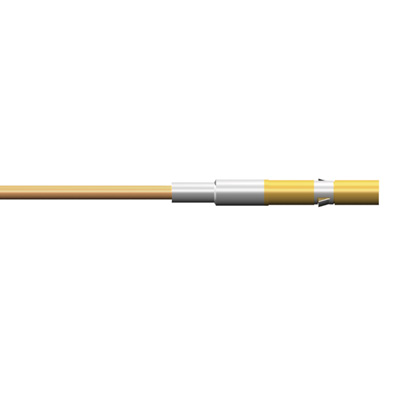

Coax, Patchcord, Receiver, 36", Mini Coax, RG316 Tan, Single Ended
| Specifications | |
|---|---|
| Characteristic Impedance | 50 Ohms |
| Frequency Range | DC to 1 GHz |
| Insertion Loss | 1.2 dB @ 1 Ghz 1.02 dB @ 500 Mhz |
| VSWR | ≤ 1.06 @ 1 Ghz |
| Operating Current | O.5 Amps Max. Continuous |
| Contact Resistance | 5 mOhms Max. |
| Mating Force | 1.5 lbs Max [0.68Kg] |
| Dielectric Withstanding Voltage (DWV) | 1500 VDC Min. |
| Insulation Resistance | 1000 mOhms Min. |
| Contact Body | Female & Male (RCV & ITA) – shield – brass, center conductor – BeCu |
| Contact Plating | Center conductor – 60µ" Au over 100µ" Ni; Shield – 50µ" Au over 100µ" Ni |
| Cycle Life | 20,000 Cycles |
| Wire Type | RG316, M17/113 50 OHM |
