7-333178000-036

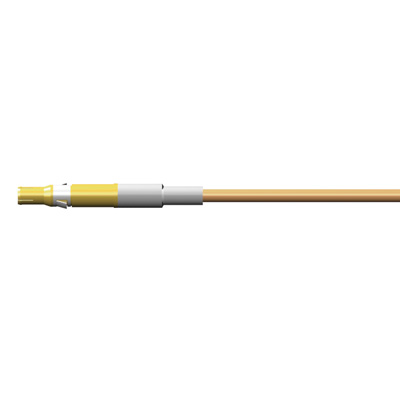

Coax, Patchcord, ITA, 36", Mini Coax, RG178 Tan, Single Ended

Specifications
Characteristic Impedance 50 Ohms
Frequency Range DC to 1 GHz
Insertion Loss 1.2 dB @ 1 Ghz
1.02 dB @ 500 Mhz
VSWR ≤ 1.06 @ 1 Ghz
Operating Current O.5 Amps Max. Continuous
Contact Resistance 5 mOhms Max.
Mating Force 1.5 lbs Max [0.68Kg]
Dielectric Withstanding Voltage (DWV) 1500 VDC Min.
Insulation Resistance 1000 mOhms Min.
Contact Body Female & Male (RCV & ITA) – shield – brass, center conductor – BeCu
Contact Plating Center conductor – 60µ" Au over 100µ" Ni; Shield – 50µ" Au over 100µ" Ni
Cycle Life 20,000 Cycles
Wire Type RG178, M17/93 50 OHM
