7-362116000-036

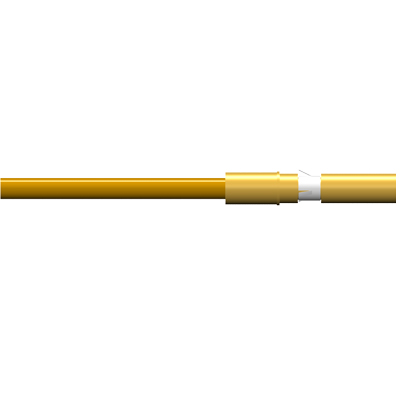

Coax, Patchcord, Receiver, 36", Micro Coax, RG316 Tan, Single Ended
| Specifications | |
|---|---|
| Characteristic Impedance | 50 Ohm |
| Frequency Range | DC – 3 GHz |
| Contact Isolation | -90 dB minimum |
| VSWR | 1.22 @ 3 GHz |
| Mating Force | 1.5 lbs. Max. [0.68Kg] |
| Insertion Loss | – √f(GHz) x .06 dB |
| Dielectric Withstanding Voltage (DWV) | 800 V RMS |
| Cycle Life | 10,000 cycles |
