50 GHz Micro Coax

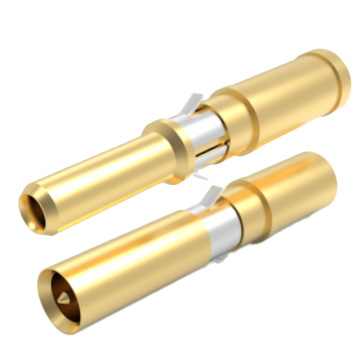

VPC's 50 GHz micro coax contacts demonstrate outstanding RF performance from DC to 50 GHz. They offer the best density for higher frequency requirements, and can be used in micro coax modules for 90 Series systems and iSeries solutions. They are available in patchcords using Flex 405 high frequency wire. For questions regarding VPC 50 GHz solutions, just click here to contact a Field Application Engineer.

CLICK HERE for COTS configurations and part number designations

DOWNLOAD 50 GHZ DATASHEET



Mechanical Specifications

Contact Material

Copper Alloy
Contact Body Material Shield - Brass, Center Conductor - Copper Alloy
Contact Plating 50 μ” Au over Ni
Contact Termination Solder - Clamp

Electrical Specifications

Characteristic Impedance

50 Ω
Frequency Range DC to 50 GHz
Dielectric Withstanding Voltage 700 VRMS
Insertion Loss .095 x √f(GHz) dB
Contact Resistance Center Contact - 6 mΩ, Outer Contact - 4 mΩ
VSWR 1.35 Max

Environmental Specifications

Operating Temperature

-65 °C to +165 °C
Vibration MIL-STD-202, Method 204, Test Condition D
Shock MIL-STD-202, Method 213, Test Condition I
Insulation Resistance 2000 MΩ

For questions regarding 50 GHz patchcords, just click here to contact a Field Application Engineer.

Contact - ITA

  • 610141108
    Micro Coax, Contact, ITA, 50 GHz

Contact - Receiver

  • 610140108
    Micro Coax, Contact, Receiver, 50 GHz

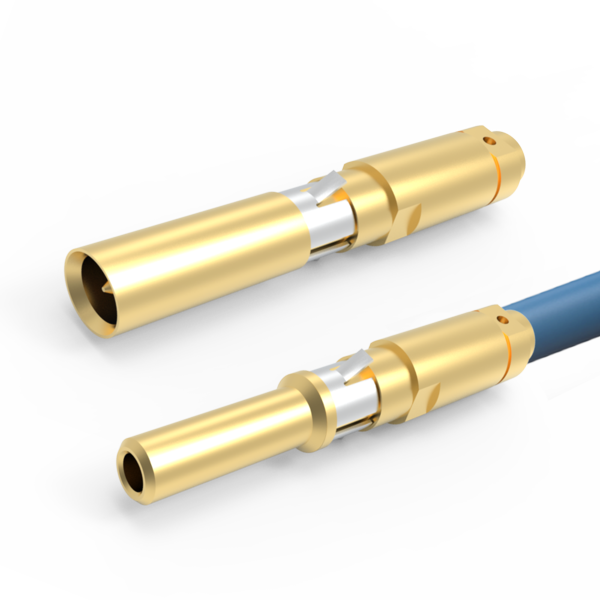

Patchcord-ITA-Micro Coax

  • 7-372105371-036
    Micro Coax, Patchcord, ITA, 36", 50 GHz, Flex 405, to 50GHz Receiver
    7-372105371-072
    Micro Coax, Patchcord, ITA, 72", 50 GHz, Flex 405, to 50GHz Receiver
    7-372105764-036
    Micro Coax, Patchcord, ITA , 36", 50 GHz, Flex 405, to 2.4 MM Plug
    7-372105764-072
    Micro Coax, Patchcord, ITA , 72", 50 GHz, Flex 405, to 2.4 MM Plug

Patchcord-Receiver-Micro Coax

  • 7-371105764-036
    Micro Coax, Patchcord, Receiver, 36", 50 GHz, Flex 405, to 2.4 MM Plug
    7-371105764-072
    Micro Coax, Patchcord, Receiver , 72", 50 GHz, Flex 405, to 2.4 MM Plug
