310104115

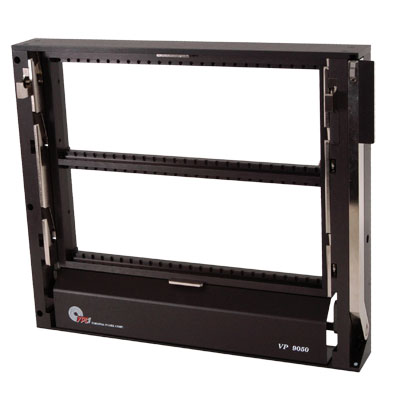

Receiver, 9050, 50 Module Double Tier

Specifications
Weight 25 lbs. [7.08 kg]
Frame Material Anodized Aluminum
Slide Material Nickel Plated Steel
Linkage, Handle, Latch Stainless Steel
Available Module Slots 50 Positions
Cycle Life 20,000 Cycles
Temperature -55° C to 85° C
Max. Weight Support 80 lbs. @ 12 ” [36 kg @ 30.5 cm]
Max. Mating Force 850 lbs. [385.6 kg]

The 50 Module Receiver is a rugged system designed to accommodate high I/O. With high contact point availability, the 50 Module Receiver is suited for larger test and measurement systems.
