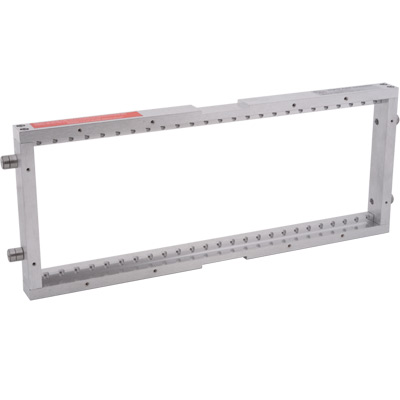

410104111

What's New
Online Tools
Interconnect Solutions
Docking / ATE

Handheld

Rack Mount

Platform

Pull Thru Solutions

Mass Interconnect

Accessories
Docking / ATE

VPC’s iDock Series features engageless frames for use with automatic test handling equipment to mate test adapters. Automatic docking connectors greatly reduce testing time and increase accuracy.

D1

Engages up to 160 signal contacts

Configured for 1 Module

D3/D4

Engages up to 672 signal contacts

Configured for 3 or 4 Modules

D12

Engages up to 2,880 signal contacts

Configured for up to 12 Modules
Handheld

Handheld ITAs for every I/O Requirement

i2 Micro iCon

High density modular, configurable signal connector

Engages up to 168 signal contacts

i2 MX

Modular, configurable signal connector

Offers EMI Protection

i1

Single Module connector

Engages up to 160 signal contacts

iCon

Two Module connector

Engages up to 320 signal contacts
Rack Mount

Our G Series offers a range of I/O options.

G2

Configured for up to 2 modules

Engages up to 480 signal contacts

G6

Configured for up to 6 modules

Engages up to 1,440 signal contacts

G6x

Configured for up to 9 modules

Engages up to 1,920 signal contacts

G10

Configured for up to 10 modules

Engages up to 2,400 signal contacts

G10x

Configured for up to 15 Modules

Engages up to 3,200 signal contacts

G12

Configured for up to 12 Modules

15" platform included

G18

Configured for up to 18 modules

Engages up to 4,320 signal contacts
Platform

Platform solutions offer all the benefits of VPC rack panel solutions plus a platform for ITA fixtures. This platform allows easier engagement, proper alignment, and takes up minimal space.

S6

Engages up to 1,440 signal contacts

Can be mounted to any horizontal surface

G12

Configured for up to 12 modules

15" or 20" platforms available

G12x

Configured for up to 18 modules

15" or 20" platforms available
Pull Thru Solutions

Allows pull through removal of connector modules and instrumentation from chassis backplane.

G20

Configured for up to 20 modules

Mate over 2,000 signal points

G20x

Configured for up to 28 modules

Can be used with PXI pull-thru adapters

G40x

Configured for up to 48 modules

Can be used with PXI pull-thru adapters

Pull-Thru Adapters
Mass Interconnect

Mass Interconnect systems are available in multiple sizes and configurations to accommodate virtually any testing requirement. VPC Mass Interconnect systems are flexible, reconfigurable, and modular by design.

9025

High I/O System Ideal for Rack Mount Applications

Configured for up to 25 Modules

9025TR

High I/O Platform Solution

Configured for up to 25 Modules

9025 VXI

25 Module VXI Solution

Pre-wired adapters for wiring directly to VXI cards

9050

High I/O System Ideal for Rack Mount Applications

Configured for up to 50 Modules

9050TR

High I/O Platform Solution

Configured for up to 50 Modules

9050 VXI

50 Module VXI Solution

Pre-wired adapters for wiring directly to VXI cards
Accessories

Interconnect Adapters

Strain Relief

Screw Kits

Extraction Tools

Tools
Contacts
Signal

High Speed Digital

Power

Coax

Thermocouple

Fiber Optic

Pneumatic

Twinax
Signal

VPC offers two types of signal contacts ideal for low voltage and low current applications.

QuadraPaddle Signal

5 Amp

22-28 AWG

TriPaddle Signal

7 Amp

20-24 AWG
High Speed Digital

VPC’s line of high speed inserts are designed to address the needs of test systems utilizing high speed data applications.

VTAC Insert

Data rate 12.5+ Gbps/ Diff pair

Only available in patchcords

VTAC Right Angle Insert

10+ Gbps/Diff pair

PCB to VTAC

VTAC Vertical Insert

12.5+ Gbps/ Diff pair

PCB to VTAC

SIM QuadraPaddle Insert

4 Signal contact positions

22-28 AWG

Twinax Contact

3 Amp

22 AWG
Power

VPC’s line of power contacts are designed for high current applications and vary in amperage up to 150 Amps.

Micro Power

21 Amp

12-14 AWG

Mini Power

65 Amp

8 AWG

High Power

150 Amp

2 AWG
Coax

VPC offers an impressive line of coax contacts ideal for a wide range of RF applications.

50 Ohm Mini

50 Ohm

1-2 GHz

50/75 Ohm Micro

3-10.5 GHz

RG 316, RG 178, RG 179

75 Ohm HD

75 Ohm HD

3 GHz

75 Ohm

DC to 3 GHz

RG179

20/26 GHz

50 Ohm

DC to 26 GHz

40 GHz Contact

50 Ohm

2.92 mm

50 GHz Micro

50 Ohm

Only available as a patchcord
Thermocouple

VPC thermocouple contacts offer match pairing for primarily K-type thermocouples.

Chromel, Type K(°C)

Alumel, Type K(°C)

Constantan, Type T(°C)

Copper, Type T(°C)
Fiber Optic

VPC fiber optic patchcords are available in Polymer Optical Fiber and Multimode. We also have the capability to provide specialty fiber optic patchcords and cables.

POF

For low speed, short distance needs

5,000 mating cycles

Multimode

For high speed needs

5,000 mating cycles
Pneumatic

VPC pneumatic contacts are ideal for air pressure applications such as industrial automation.

Mini

100 PSI Rating

20,000 mating cycles

1/8" ID

100 PSI Rating

20,000 mating cycles

3/8" ID

100- 250 PSI Rating

20,000 mating cycles
Twinax

VPC twinax contacts provide differential voltage options most commonly used in digital and data applications.
Modules
Product Series

Contact Type
Product Series

Choose the module type by VPC product line.

iCon Series

90 Series

Contact Type

Choose the module type needed by the VPC contact type being used.

High Speed Modules

Signal Modules

Coax Modules

Power Modules

Twinax Modules

Thermocouple Modules

Pneumatic Modules

Vacuum Modules
High Speed
VTAC PCB

Infinity Connector

VTAC Wired
VTAC PCB

Connect directly from contact to board.

VTAC Insert

12.5+ Gbps/ Diff pair

Pass thru insert

VTAC Right Angle

10+ Gbps/Diff pair

PCB to VTAC

VTAC Vertical Header

12.5+ Gbps/ Diff pair

PCB to VTAC

Infinity Connector

• Infinite connections
• VTAC, QP & Micro Power

PCB Adapters - VTAC

PCB to Std Connectors

Plug-and-Play

PCB Adapters - SIM

10+ Gbps/Diff pair

Plug-and-play
Infinity Connector

• Infinite connections
• VTAC, QP & Micro Power
VTAC Wired

Reduce resistance, increase signal integrity with a seamless transition from wire to connector.

VTAC Patchcords

Multiple protocols

Custom configurations

SIM QuadraPaddle

4 Signal contact positions

22-28 AWG

VTAC Modules

Available for 90 series & iSeries

Compatible with SIM inserts

VTAC Insert

Data rate 12.5+ Gbps/ Diff pair

Only available in patchcords

Twinaxial Contact

3 Amp

22 AWG
Wire & PCB
Wired Systems & Enclosures

PCB Solutions

Wire+ Services

Online Wiring Tools
Wired Systems & Enclosures

VPC's in-house wiring team has the experience and know-how to build and assemble complete discrete-wired enclosures.

Standard Enclosures

Custom Enclosures
PCB Solutions

VPC offers multiple PCB solutions for flexibility and performance.

Infinity Connector

• Infinite connections
• VTAC, QP & Micro Power

PCB Mountable Receivers & Modules

iCon, i1, i2 Micro

Signal & Micro Coax Modules

PCB Adapters- SIM

10+ Gbps/Diff pair

Plug-and-play

PCB Adapters- VTAC

PCB to Std Connectors

Plug-and-Play

PCB Adapters- QuadraPaddle

168-192 signal pos

QB mod to PCB

PCB Adapters- TriPaddle

64-96 signal pos

TP mod to PCB

VTAC Right Angle

10+ Gbps/Diff pair

PCB to VTAC

VTAC Vertical Headers

Data rate 12.5+ Gbps/ Diff pair

Crosstalk -30dB min

Custom PCB Enclosures

Flexible options using PCB & wire

Economical versus wired ITA

Pull-Thru Solutions

Limited or no wiring

Remove instruments from chassis backplane
Wire+ Services

VPC's Wire+ services provide engineered, finished and quality-tested cables assemblies and patchcords to help complete your test system.

Standard Patchcords

VPC's standard and stocked patchcords make getting patchcords easy and with quick turnaround times.

Flying Leads

VPC provides engineered, finished, and quality tested patchcords with flying leads to help customize your test system.

Customer Wirelist Template

Online Wiring Tools

Use these powerful tools to build standard patchcords, find PXI card solutions or enter project wiring requirements.
Resources
FAQ

Customer Wirelist Template

Why Choose VPC?

VPC Capabilities

User Manuals

Tech Tips

Configurators

Performance Specs

Videos

Regulatory, Compliance & Certifications
FAQ

Customer Wirelist Template

Why Choose VPC?

VPC Capabilities

User Manuals

assets

Tech Tips

assets

Configurators

Performance Specs

Videos

Regulatory, Compliance & Certifications

assets

Specifications
Weight	2.6 lbs. [1.18 kg]
Frame Material	Chromated Aluminum
Available Module Slots	25 Positions
Cycle Life	20,000 Cycles
Temperature	-55ºC to 85ºC
Max. Mating Force	787 lbs. [357 kg]

	Part Number	Description
	410112422	Adapter Plate, 9050 Enclosure to 9025 ITA (ITA Positioned on Upper Part of Enclosure)
	410112469	Adapter Plate, 9050 Enclosure to 9025 ITA (ITA Centered on Enclosure)
	410112772	Adapter Plate, 9050 Enclosure to 9025 ITA (ITA Positioned on Upper Part of L-Shaped Enclosure)
	410112976	Adapter Plate, 9050 Enclosure to 9025 ITA (ITA Positioned on Lower Part of Enclosure)

	Part Number	Description
	410112198	Enclosure, 9025, Hinged Cover, 4" Depth
	410112255	Enclosure, 9025, 2" Depth
	410112273	Enclosure, 9025, Hinged Cover, 8" Depth
	410112309	Enclosure, 25 Module, Large, No Handles
	410112336	Enclosure, 9050, Hinged Cover, Incl. Adapter for 9025, 4" Depth
	410112368	Enclosure, 9025, 6" Depth
	410112375	Enclosure, 50 Module, Hinged Cover Plate, 8" Deep
	410112823	Enclosure, 9025TR, Hinged Cover, 15" Depth
	410114004	Enclosure,9025TR, Front Mount, Sloped, 15" Depth

	Part Number	Description
	310104115	Receiver, 9050, 50 Module Double Tier
	310104127	Receiver, 9025 VXI, 25 Module, C-Size Interlocking
	310104248	9050, 50 Module, Receiver, VXI and Discrete Wiring, Double Tier
	310104307	Receiver, 9075, 75 Module, Triple Tier
	310104368	Receiver, 9050, 50 Module, Dual Discrete Wiring Tiers
	310104387	Receiver, 9025, 25 Module, with Slide Mounting Kit (slide kit required)
	310104420	Receiver, 9025, 25 Module, Single Tier
	310104435	Receiver, 9025TR, 25 Module, with 20" Platform (slide kit required)
	310104437	Receiver, 9025, 25 Module, for Slide Mounting (slide kit required)
