310104429
Receiver, 9050, 50 Module, Includes EMI Protection
| Specifications | |
|---|---|
| Weight | 30.4 lbs. [13.79 kg] |
| Frame Material | Anodized and Clear Chromated Aluminum |
| Slide Material | Nickel Plated Steel |
| Linkage, Handle, Latch | Stainless Steel |
| Available Module Slots | 50 Positions |
| Cycle Life | 20,000 Cycles |
| Temperature | -55° C to 85° C |
| Max. Weight Support | 80 lbs. @ 12" [36 kg @ 30.5 cm] |
| Max. Mating Force | 1870 lbs. [848.2 kg] |

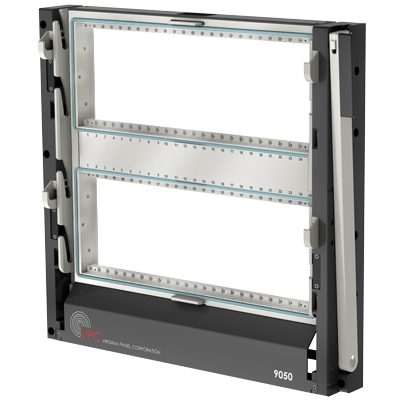

Receiver, 9050, 50 Module, Includes EMI Protection
The 9050, 50-module receiver is designed for high I/O applications and suited for larger test and measurement systems. Both tiers are designed for discrete wiring and can accommodate individual 9025 ITAs or a 9050 ITA. This model 9050 also offers a gasket for EMI applications.
