310104431

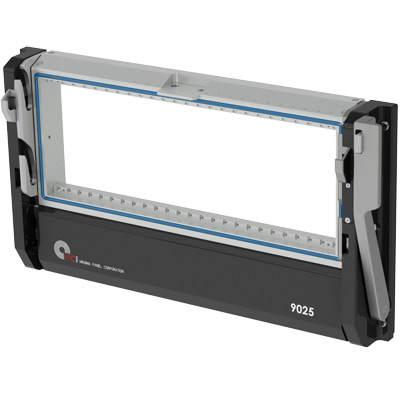

Receiver, 9025, 25 Module, Includes EMI Protection
| Specifications | |
|---|---|
| Weight | 12.30 lbs. [5.58 kg] |
| Frame Material | Anodized and Nickel Plated Aluminum |
| Slide Material | Nickel Plated Steel |
| Linkage, Handle, Latch | Stainless Steel |
| Available Module Slots | 25 Positions |
| Cycle Life | 20,000 Cycles |
| Temperature | -55° C to 85° C |
| Max. Weight Support | 80 lbs. @ 12 ” [36 kg @ 30.5 cm] |
| Max. Mating Force | 1102 lbs. [499.9 kg] |
The 25 Module Receiver is a rugged system devised to accommodate medium I/O. With high contact point availability, the 25 Module Receiver is suited for larger test and measurement systems. This 9025 offers a gasket for EMI applications.
