310104436

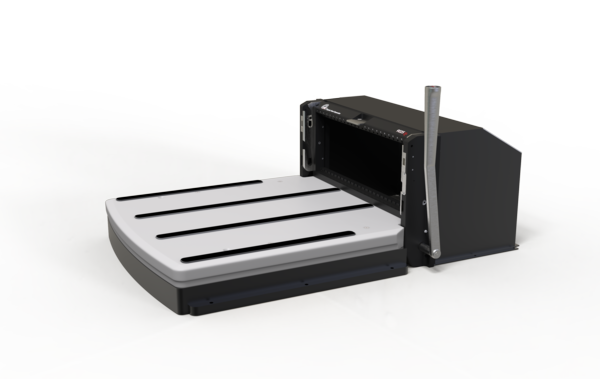

Receiver, 9025TR, 25 Module, with 20" Platform, for Tabletop

Specifications
Weight 38.1 lbs [17.28 Kg]
Frame Material Anodized Aluminum
Slide Material Nickel Plated Steel
Linkage, Handle, Latch Stainless Steel
Available Module Slots 25 Positions
Cycle Life 20,000 Cycles
Temperature -55° C to 85° C

The 9025TR receiver includes a platform with runners that provide a smooth-sliding action, ideal when using large fixtures. It can be adapted to accommodate vacuum or mechanical fixturing. VPC modules can be intermixed to establish flexible custom interfaces which are ideal for functional and system testing applications. The 9025TR uses all standard modules and contacts, and includes a microswitch. Includes rear cover to protect wiring.
