Specifications | |
---|---|
Weight | .55 lbs [.25 Kg] without protective cover |
Frame Material and Clamp Housing | Glass Reinforced Thermoplastic |
Hardware Material | Stainless Steel |
Latches | Nickel-Plated Beryllium Copper |
Backshell | Glass Reinforced Thermoplastic |
Protective Cover Material | Low Density Polyethylene |
Cable Clamp Material | Powder Coated Aluminum |
Available Module Slots | 1 Position |
Cycle Life |
10,000 Cycles |
Shock | 50 g's (Condition A MIL-STD-1344, Method 2004/EIA364-27) |
Vibration Random | 11.6 g's RMS (Condition V PSD 0.1 MIL-STD-1344, Method 2005/EIA364-28) |
Vibration Sine | 15 g's (Condition III MIL-STD-1344, Method 2005/EIA364-28) |
Temperature | -55° C to 105° C |

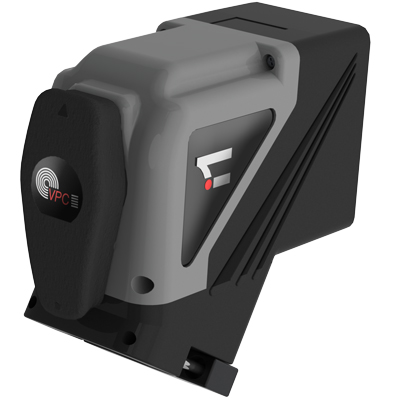

ITA, i1, 1 Module, Extra-Large Cable Exit
