510161124

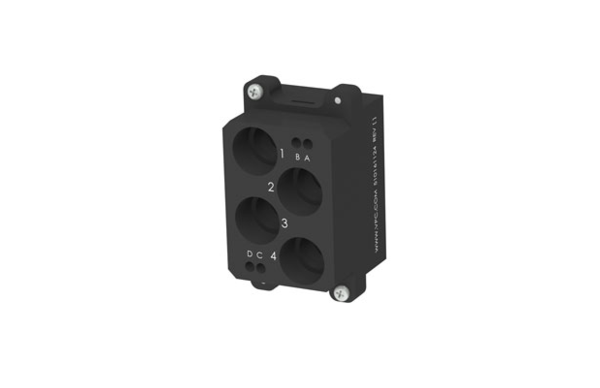

TriPaddle Signal / High Power Module, ITA, iCon, 4/4 Position

Specifications
Material FR4
Temperature Operating:
-55˚C to 125˚C
Non Operating:
-55˚C to 140 ˚C
Dielectric Withstanding Voltage (DWV) 1500 VDC Min.
Insulation Resistance 1000 M Ω Min.
Available Contact Positions 4 Signal/4 High Power
Module Positions Needed 1

iCon modules mount from the rear of the iCon/i1 receiver and ITA and allow installation and removal of pre-wired cable blocks. The modules also have captive Phillips head screws.

Add To Quote

Accessories and Related Parts

Contact - ITA

Part Number

Description

610150101

High Power Contact, ITA, 150 Amps, 2 AWG, 30µ" Gold

ITA

Part Number

Description

410123106 ITA, iCon, with Large Cable Clamp, with Protective Cover
410123122 ITA, iCon with Oversized Backshell
410128103 ITA, i1, with Large Cable Clamp and Protective Cover

Module - iCon/i1 Receiver

Part Number

Description

510160124 TriPaddle Signal / High Power Module, Receiver, iCon, 4/4 Position

Receiver

Part Number

Description

310123103 Receiver, iCon, Reverse Module Configuration for iCon ITA Modules, with Protective Cover

Strain Relief Plate

Part Number

Description

510109572

Strain Relief Plate, Receiver, iCon/ i1 High Power
