410130132
ITA, i2 MX, EMI, w/ 2 Hybrid Module Inserts, XL Backshell (XL Bend Radius and Cable Exit)
| Specifications | |
|---|---|
| Backshell | Ni Plated Aluminum |
| Frame & Knob | Ni Plated Zinc |
| Drive System | Heat-Treated BeCu & Brass, Ni Plated |
| Dust Shield | Black Thermoplastic w/ EMI Filler |
| Hardware | Stainless Steel |
| EMI-Shielded | Yes |
| Max Cable Effective Dia. | 1.67" |
| Cycle Life | 10,000 Cycles |

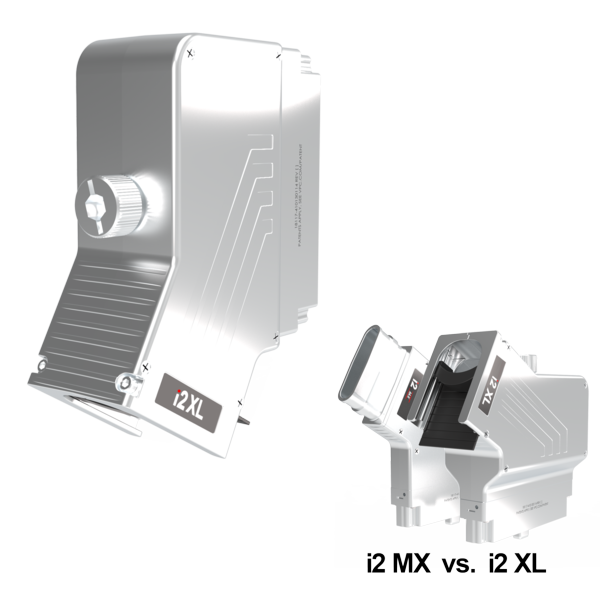

ITA, i2 MX, EMI, w/ 2 Hybrid Module Inserts, w/ XL Backshell (XL Bend Radius and Cable Exit)
This model i2 MX includes 2 Hybrid Module inserts. Each module insert includes 8 Mini Power/Coax and 8 TriPaddle positions. The XL-sized backshell allows for a greater cable bend radius and large cable exit which accommodates larger, high speed cables or a high volume of twisted pair combinations. The max cable bundle eff diameter= 1.67".
Note: XL backshell size creates requirement for larger spacing when used for side-by-side mounting. Minimum recommended distance = 1.75".
Compatible with i2 MX receiver p/n 310130203.
Keying feature requires purchase of separate keying kit p/n 310113461.
