410131111
ITA, D16, 16 Modules, 90 Series Modules
| Specifications | |
|---|---|
| Frame Material | Nickel Plated Aluminum |
| Guide Pin Material | Heat Treated Stainless Steel |
| Floating Bushing Material | Nylon |
| Internal Bushing Material | Stainless Steel |
| Operating Temperature | -55ºC to 110°C |
| Cycle Life Rating | 100,000 Mating Cycles |
| RoHS Directive 2011/65/EU Status | Compliant |
| REACH Article 33 Status | Compliant |
| ECHA Article 59 of Reach Regulation | Compliant |

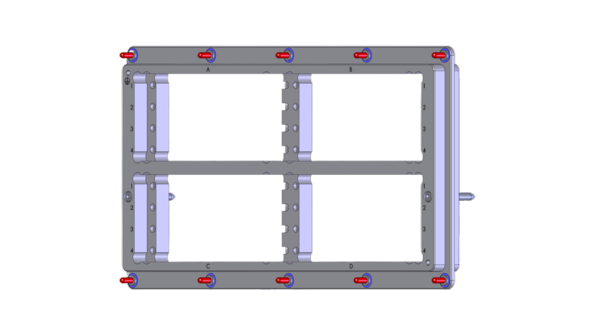

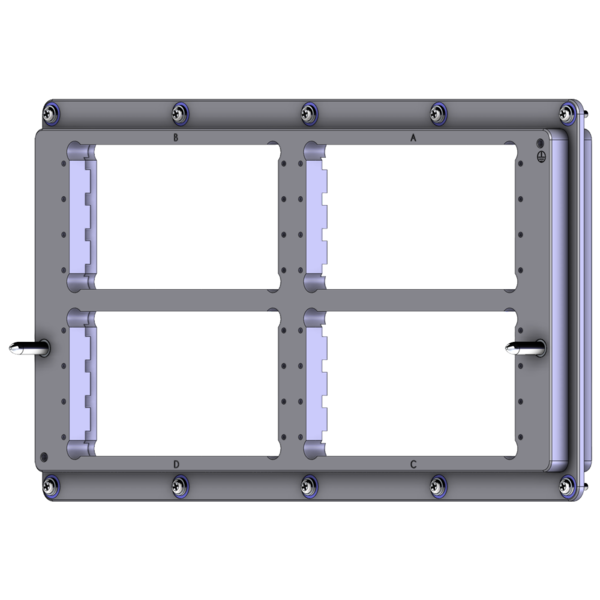

The D16 ITA frame accepts sixteen 90 Series modules. The connector can engage up to 3,072 signal contacts.
