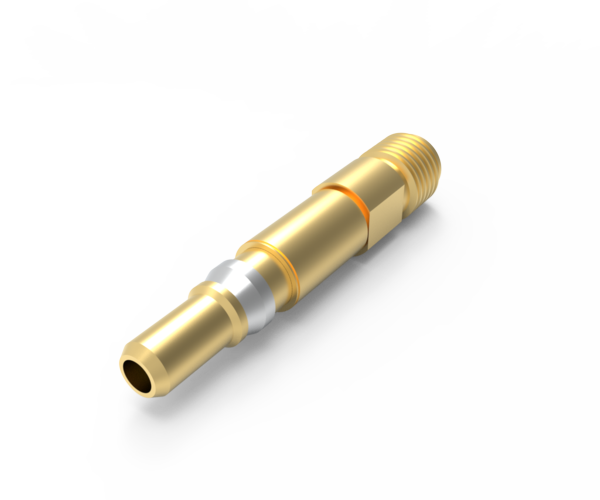

Coax, Contact, ITA, 20/26 GHz, 3.5MM, w/ SMA Adapter, 90 Series Modules only

Mechanical Specifications
Durability 20,000 cycles
Contact Material Shield – brass
Center conductor – BeCu
Contact Plating 30µ" Au over 100µ" Ni
Contact Termination 3.5mm compatible
Insulator PTFE
Mating Force 3.0 lbs max [1.36 kg]
Electrical Specifications
Characteristic Impedance 50 Ω
Frequency Range DC to 26 GHz
VSWR 1.15 + .01 (f) GHz
Insertion Loss .06 x√f(GHz) dB
DWV 800 V RMS Shield to center contact
1000 V RMS
Contact Resistance 5 mOhms center/ 3 mOhms outer
Cable Specifications 3.5mm compatible
Environmental Specifications
Operating Temperature -65°C to +125°C
Vibration MIL-STD 202, Method 204, Test Condition D
Shock MIL-STD 202, Method 213, Test Condition I
Insulation Resistance 2000 MΩ min.

Coax, Contact, ITA, 20/26 GHz, 3.5MM, w/ SMA Adapter, 90 Series Modules only

Primary mating contact 610102135. (May mate with other Receiver contacts, as well.)
