510108240

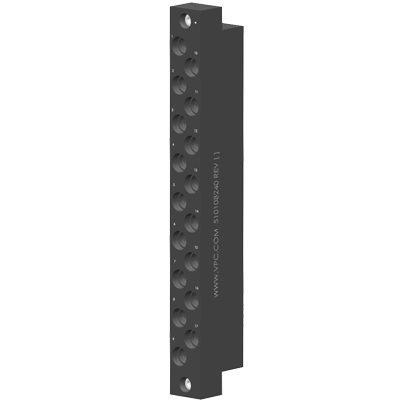

Coax, Module, ITA, 20/26 GHz, 90 Series, 17 position

Specifications
Module Material FR4
Temperature Range Operating:
-55°C to 125°C
Non Operating:
-55°C to 140 °C
Dielectric Withstanding Voltage (DWV) 1500 VDC min.
Available Contact Positions 17
Module Positions Needed 1

Coax, Module, ITA, 20/26 GHz, 90 Series, 17 position

For use with 20/26 GHz ITA contacts with SMA adapter.

Primary mating module 510104287.

*Please note: VPC receiver modules must be separated into two pieces in order to extract contacts. For detailed instructions please consult the user manual/procedure sheet for this module before extracting contacts.

Add To Quote

Accessories and Related Parts

Contact - ITA

Part Number

Description

610102118

Coax, Contact, ITA, 20/26 GHz, Flex 402*

N/A
610102134

Coax, Contact, ITA, 20/26 GHz, 3.5MM, w/ SMA Adapter, 90 Series Modules only

Module - 90 Series Receiver

Part Number

Description

510104287

Coax, Module, Receiver, 20/26 GHz, 90 Series, 17 position, incl. strain relief plate

Module Accessory Kit

Part Number

Description

VPC 510109495

Module Accessory Kit, Quantity 26, 4-40 x .50"  Socket Head Cap Screws Stainless Steel
