Twinaxial, Contact, Receiver, 50 Ohms

Specifications
Characteristic Impedance 50 Ohms
Operating Voltage and Current 3 amps max. continuous (480 RMS)
Contact Resistance

Center contact is < 6.5 mOhms
Intermediate contact is < 3 mOhms
Outer contact is < 3.5 mOhms

Insertion Loss –0.044 dB @ 0.2 GHz
VSWR approximately 1.1:1 @ 100 MHz
Insulation Resistance 106 mOhms min
Contact Body Outer Shell – brass inner Shield – bronze
Male Contact – brass
Contact Termination Conductors – solder
Shield – solder
Contact Plating 40 µ" Au over 130 µ" Ni
RoHS Directive 2011/65/EU Status Compliant
REACH Article 33 Status Compliant
ECHA Article 59 of Reach Regulation Compliant
AVG Mating Force (lbs) 3.00

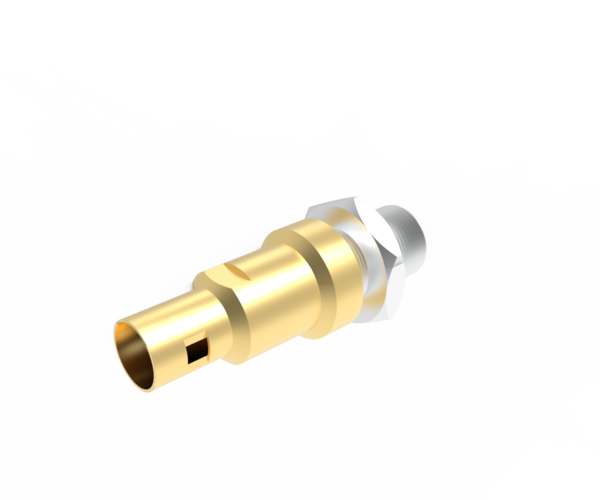

Twinaxial, Contact, Receiver, 50 Ohms

For increased reliability and to eliminate the need for polarization, the design of VPC’s Twinaxial contact consists of two concentric inner conductors for termination to the twisted pair, and an outer shield for termination of the cable shield.
