510160109

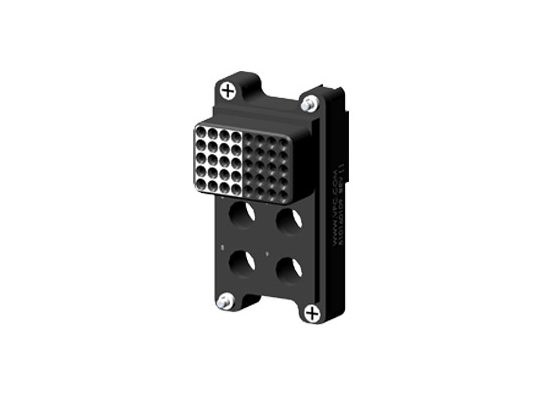

TriPaddle Signal / Twinaxial, Module, Receiver, iCon, Hybrid 40/4 Position

Specifications
Material FR4
Temperature Range Operating:
-55°C to 125°C
Non Operating:
-55°C to 140 °C
Dielectric Withstanding Voltage (DWV) 1500 VDC min.
Available Contact Positions 40/4
Module Positions Needed 1

TriPaddle Signal / Twinaxial, Module, Receiver, iCon, Hybrid 40/4 Position

iCon modules mount from the rear of the iCon receiver and ITA and allow installation and removal of pre-wired cable blocks. The modules also have captive Phillips head screws.

Add To Quote

Accessories and Related Parts

Contact - Receiver

Part Number

Description

610110101

Signal, Contact, Receiver, TriPaddle, 7 Amp, 20-24 AWG
610110128

Signal, Contact, Receiver, TriPaddle, 10 Amp, 14-18 AWG
610110167

Signal, Contact, Receiver, TriPaddle, 7 Amp, 26-28 AWG
610110177

Signal, Contact, TriPaddle , Receiver, 10 Amp, 14-18 AWG
610110179

Signal, Contact, TriPaddle, Receiver, 5 Amp, .025" Round Post
610113144

Twinaxial, Contact, Receiver, 50 Ohms

Module - iCon/i1 ITA

Part Number

Description

510161109

TriPaddle Signal / Twinaxial, Module, ITA, iCon, Hybrid 40/4 Position

Receiver

Part Number

Description

310123101 Receiver, iCon, with Protective Cover
310123102

Receiver, iCon EMI , with Protective Cover and Strain Relief
310128101 Receiver, i1, with Protective Cover
310131102

Receiver, D1, 1 Module
