610132104

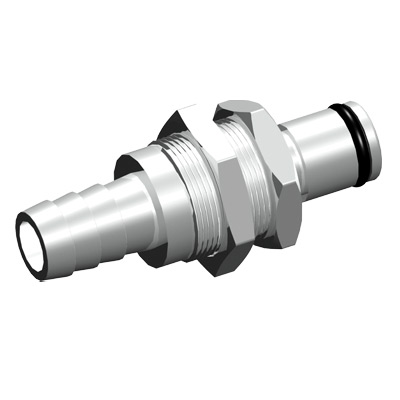

Pneumatic Contact, ITA, Hose Barb, for 3/8" [9.5 mm] ID Tubing
| Specifications | |
|---|---|
| Pressure/Vacuum Rated | 250 psi (17.3 Bar) |
| Operating Temperatures |
-40°F to 180°F |
| Contact Body | Chrome Plated Brass |
| Cycle Life | 20,000 cycles |
| RoHS Directive 2011/65/EU Status | Compliant |
| REACH Article 33 Status | Compliant |
| ECHA Article 59 of Reach Regulation | Compliant |
| AVG Mating Force (lbs.) | 4.94 |
Pneumatic Contact, ITA, Hose Barb, for 3/8" [9.5 mm] ID Tubing
Primary mating contact 610131104.
Pneumatic Connectors are available with either ferruless polytube fittings (3/8" tubing OD) or hose barb (3/8" tubing ID). Ferrules fittings securely attach tubing without hose clamp - which is recommended for the hose barb type (hose clamp not included). The 1/8" ID connectors are available with hose barb.
