310104127

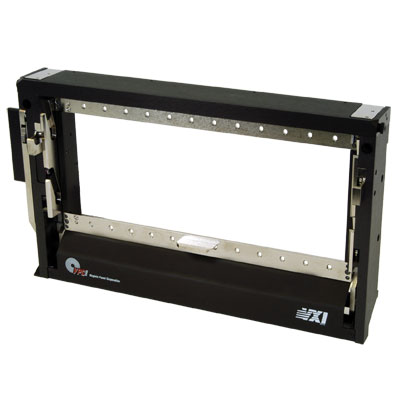

9025, Receiver, 25 Module, VXI, C-Size Interlocking

Specifications
Weight 16.06 lbs. [7.29 kg]
Frame Material Anodized Aluminum
Slide Material Nickel Plated Steel
Linkage, Handle, Latch Stainless Steel
Available Module Slots 25 Positions
Cycle Life 20,000 Cycles
Temperature -55ºC to 85ºC
Max. Weight Support 80 lbs. @ 12 " [36 kg @ 30.5 cm]
Max. Mating Force 605 lbs. [274.4 kg]

9025, Receiver, 25 Module, VXI, C-Size Interlocking

This 25 module VXI Receiver allows you to use 12 pre-wired interconnect adapters. It also hinges down for direct access to the instruments. It is equipped with a locking handle to ensure all contacts are engaged. A standard integrated microswitch shuts off power when the ITA disengages from the receiver.
