310104307

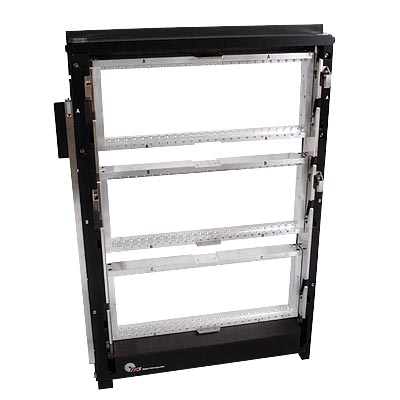

Receiver, 9075, 75 Module
| Specifications | |
|---|---|
| Weight | 43 lbs. [19.5 kg] |
| Frame Material | Anodized and Clear Chromated Aluminum |
| Slide Material | Nickel Plated Steel |
| Linkage, Handle, Latch | Stainless Steel |
| Available Module Slots | 75 Positions |
| Cycle Life | 20,000 Cycles |
| Temperature | -55° C to 85° C |
| Max. Weight Support | 80 lbs. @ 12 ” [36 kg @ 30.5 cm] |
| Max. Mating Force | 1479 lbs. [670.9 kg] |
Receiver, 9075, 75 Module
The 9075, 75 module receiver has 3 tiers and the highest I/O available.
See drawing for ITA part number compatibility for each tier.
