310104360

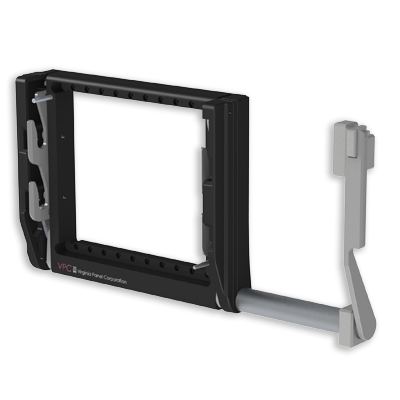

Receiver, G10, 10 Module with 4.34" [110.24mm] Extended Handle
| Specifications | |
|---|---|
| Weight | 2.5 lbs. [1.13 kg] |
| Side Material | ABS-Polycarbonate Blend |
| Frame Material | Anodized Aluminum |
| Slide Material | Nickel Plated Steel |
| Linkage, Handle, Latch | Stainless Steel |
| Available Module Slots | 10 Positions |
| Cycle Life | 20,000 Cycles |
| Temperature | -55ºC to 85ºC |
| Max.Weight Support | 25 lbs. @ 6" [11 kg @ 15.25 cm] |
| Max. Mating Force | 630 lbs. [285.8 kg] |
The 10 Module extended handle receiver allows the user to use a fixture larger than the ITA or engage to the ITA from the outside of an environmental chamber.
