Specifications
Weight	.55 lbs [.24 kg]
Frame Material	Chromated Aluminum
Available Module Slots	10
Cycle Life	20,000 Cycles
Temperature	-55º C to 85º C
Max. Mating Force	630 lbs. [285.8 kg]

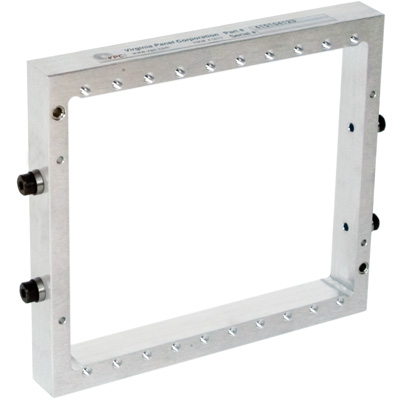

ITA, G10, 10 Module, 0.88" Thickness

Compatible with VPC 90-Series modules.

	Part Number	Description
	410112198	Enclosure, 9025, Hinged Cover, 4" Depth

	Part Number	Description
	410112291	Enclosure, G10, Hinged Cover, 4" Depth
	410114138	Enclosure, G10, 3 Cable Clamps, 4" Depth

	Part Number	Description
	410112424	Adapter Plate, Use 25 Module ITA Enclosure w/ G10 ITA.

	Part Number	Description
	410112685	Replacement Protective Cover, G10, ITA

	Part Number	Description
	310104335	Receiver, G10, 10 Module, w/ Microswitch
	310104482	Receiver, G10x, 15 Module

Part Number

Description

310104335

Receiver, G10, 10 Module, w/ Microswitch

310104482

Receiver, G10x, 15 Module
