410104272

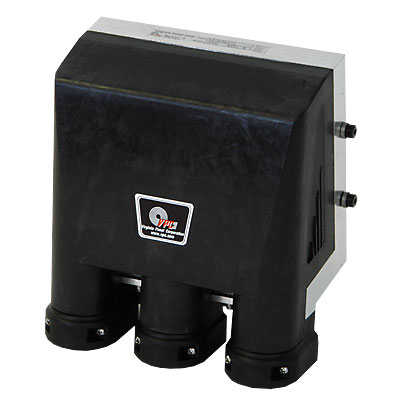

ITA, G10, 10 Module, Removable Backshell, Keying Feature, with Protective Cover

Specifications
Weight 2.1 lbs. [.95 kg]
Cover Material EMI-shielded Nylon
Frame Material Chromated Aluminum
Available Module Slots 10
Cycle Life 20,000 Cycles
Temperature -55ºC to 85ºC
Max. Mating Force 630 lbs. [285.8 kg]

The G10 ITA is equipped with a removable EMI-shielded cover. The cover slides up to provide access to wires and connectors and is secured by two screws. The removable and adjustable U-shaped cable clamps are attached by screws to the ITA frame and allows ITA modules to be pre-wired before assembly. The clamps can hold cable bundles with an oblong bushing effective diameter of 1.55". ITA strain relief plates are not needed.
