310104369

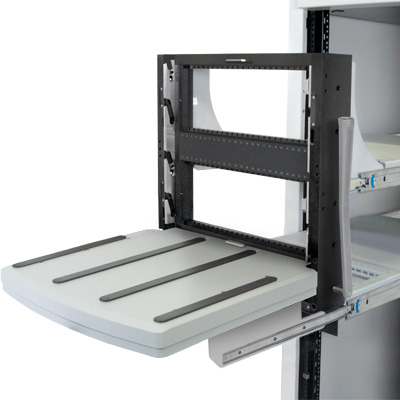

Receiver, 9050TR, 50 Module, with 20" Platform (slide kit required)

Specifications
Weight 72 lbs. [32.66 kg]
Frame Material Anodized Aluminum
Slide Material Nickel Plated Steel
Linkage, Handle, Latch Stainless Steel
Available Module Slots 50 Positions
Cycle Life 20,000 Cycles
Temperature -55° C to 85° C
Max. Weight Support 360 lbs. @ 12" [163.3 kg @ 30.5 cm]
Max. Mating Force 1654 lbs. [750.2 kg]

The 50 module platform receiver is designed to fit into a standard 19” rack. It is equipped with a locking handle to ensure your contacts are engaged. A standard integrated microswitch shuts off power when the ITA disengages from the Receiver. This receiver is designed to work with a slide kit and includes mounting flanges and instrument bracket, P/N 310 113 507. A slide kit is required for use.
