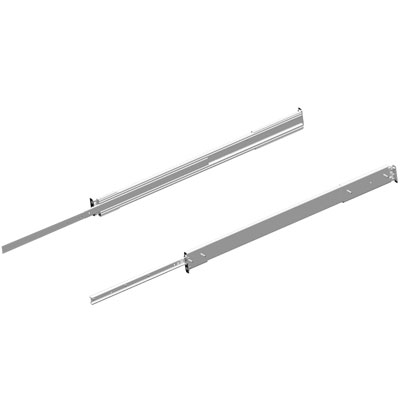

28" Slide Kit, Fits 26"-30" Deep Racks, Supports 180 lbs.
Measure rack depth between mounting rails to determine the slide mounting kit that fits the rack. An extender block kit is available for mounting to racks with recessed rails.
Accessories and Related Parts
S6, Receiver, 15" Platform Kit
S6, Receiver, 20" Platform Kit
Cable Tray, Slide Configuration, for Strain Relief and Cable Management, for 28" and longer
Instrument Bracket Kit with Strain Relief, Slide Configuration, for 28" and longer
Keyboard Tray Kit, Slide Configuration, Keyboard with Touchpad Mouse Included
Mounting Flange Kit
Mounting Flange Kit, G20/G20x Slide Mount, 6.75" Series Adapters, for NI PXI-1045 & PXI-1085 Chassis
Mounting Flange Kit, G20/G20x Slide Mount, 6.75" Series Adapters, for Pickering 40-923
Receiver, G12, 12 Module, with 15" Platform, for Slide Mount (slide kit required)
Receiver, G12, 12 Module, with 20" Platform, for Slide Mount (slide kit required)
Receiver, G18, 18 Module, Slide Mounting (slide kit required)
Receiver, G10, 10 Module, with Slide Mounting (slide kit required)
Receiver, G40x, 48 Module, 6.75" Series, for Slide Mounting (slide kit required)
Receiver, G20x, 6.75" Series, 28 Module
Receiver, G20, 6.75" Series Adapters, 20 Module
Receiver, S6, 6 Module, with 15" Platform, for Slide Mount (slide kit required)
20" Slide Kit, Fits 18"-22" Deep Racks, Supports 180 lbs.
24" Slide Kit, Fits 22"-26" Deep Racks,Supports 180 lbs.
30" Slide Kit, Fits 28"-32" Deep Racks, Supports 180 lbs.
36" Slide Kit, Fits 34"-38" Deep Racks, Supports 180 lbs.
