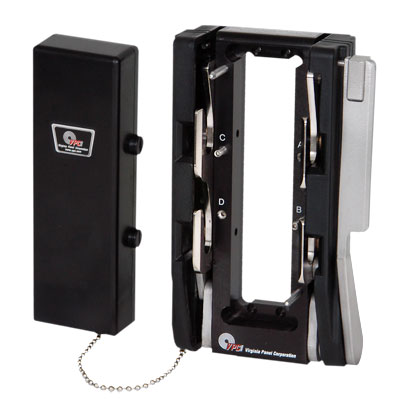

Receiver, G2, 2 Module, Includes Protective Cover and Microswitch

Compatible with VPC 90-Series modules.

Use of keying feature requires purchase of keying kit.

	Part Number	Description
	310113180	Microswitch, G2, 6 & 10 Receivers
	310118000	Alignment/ Dowel Pin Replacement Kit, G2/G6/G10, Receiver

	Part Number	Description
	410120110	ITA, G2, 2 Module, Includes EMI Removable Backshell and Protective Cover
	410120112	ITA, G2, 2 Module, Without EMI Removable Backshell and Protective Cover

	Part Number	Description
	310118112	Keying Pin Kit, Receiver/ITA

	Part Number	Description
	310113395	Fixed Mounting Panel, G2, 5U, 3 Position, (2 Blank Plates Included)

	Part Number	Description
	310113394	Replacement Protective Cover, G2, Receiver

	Part Number	Description
	310113391	Vertical Hinged Mounting Frame, G2, 5U, 3 Position, (2 Blank Plates Included)

Add To Quote
