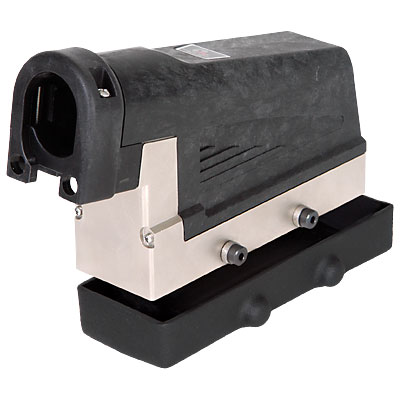

ITA, G2, 2 Module, EMI Removable Backshell, incl. Protective Cover

Weight 1.65 lbs. [.75 Kg]
Cover Material EMI-Shielded Nylon
Frame Material Nickel Plated Zinc Alloy
Available Module Slots 2 Positions
Cycle Life 20,000 Cycles
Temperature -55ºC to 85ºC

ITA, G2, 2 Module, Removable Backshell, incl. Protective Cover

The G2 ITA is equipped includes:

  • Removable EMI-shielded cover providing access to internal wires and modules
  • Adjustable U-shaped cable clamp allowing modules to be pre-wired prior to assembly
  • Ability to accommodate cable bundles with oblong bushing effective diameter of 1.59"
  • No need for ITA strain relief plate
  • Keying feature
  • Use of VPC 90 Series modules
