310120141
Receiver, G18, 18 Module, Slide Mounting (slide kit required)
| Specifications | |
|---|---|
| Weight | 16.2 lbs [7.35 Kg] |
| Frame Material | Anodized Aluminum |
| Slide Material | Nickel Plated Steel |
| Linkage, Handle, Latch Material | Stainless Steel |
| Mounting Plate, Mounting Flange, Instrument Bracket Material | Aluminum |
| Available Module Slots | 18 Positions |
| Cycle Life | 20,000 Cycles |
| Temperature | -55° C to 85° C |
| Maximum Weight Support | 25 lbs @ 6” (11 Kg @ 15.25 cm) |

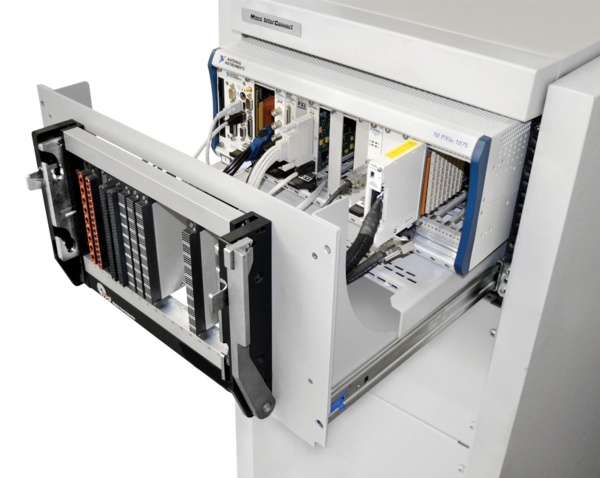

Receiver, G18, 18 Module, Slide Mounting (slide kit required)
This lightweight and rugged 18 module receiver is best-suited for larger test chassis. This receiver is designed to work with a slide kit (must be purchased separately)and includes:
- Receiver mounting panel
- Mounting flanges/brackets
- Instrument bracket (shelf)
*Please note: Consult procedure sheet/user manual linked above for information regarding slight slide mechanism bracket protrusion downward into next U height on test rack on both sides of receiver.
