310120161

Receiver, G18, 18 Module, EMI Gasket, with Slide Mounting (slide kit required)

Specifications
Weight 16.2 lbs [7.35 Kg]
Frame Material Anodized and Clear Chromated Aluminum
Slide Material Nickel Plated Steel
Linkage, Handle, Latch Material Stainless Steel
Mounting Plate, Mounting Flange, Instrument Bracket Material Aluminum
Available Module Slots 18 Positions
Cycle Life 20,000 Cycles
Temperature -55° C to 85° C
Maximum Weight Support 25 lbs @ 6” (11 Kg @ 15.25 cm)

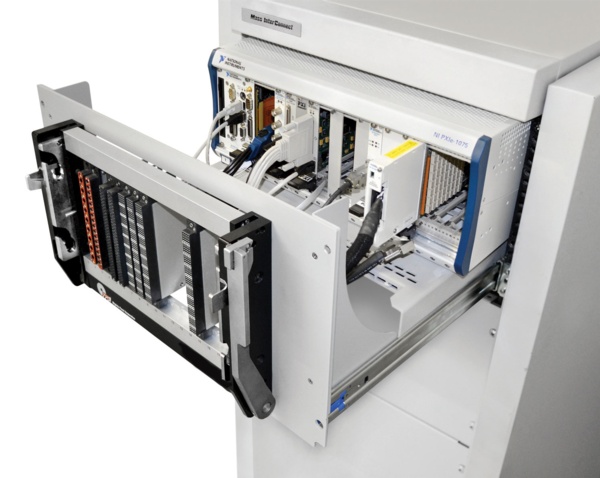

The lightweight and rugged 18 module Receiver provides a solution that will accommodate larger ATE chassis’ (PXI, VXI, SCXI). It allows immense versatility by affording space for up to an 18 slot PXI chassis. This receiver is designed to work with a slide kit and includes a mounting bracket, flanges and instrument bracket. A slide kit is required for use. This receiver also comes with a gasket for EMI applications.
